Piggy-backing a Modern Analytics Architecture

Let’s say you’re one of the many Federal Agencies, Regulated Industries, or State & Local Governments migrating their analytical infrastructure onto the secured GCP platform (those ISO 27001, ISO 27017, ISO 27018, FedRAMP, HIPAA, and GDPR certifications make this a no brainer!). You will soon have access to tools and advanced capabilities that will enable a more comprehensive usage of Content Manager’s audit, compliance, and governance features. More importantly, you can start leveraging technological investments driven by departments & cost centers that have significantly higher budgets than you may have in your Records Management Office.

Consider this simple architectural pattern:

Automated Audit & Compliance.png

I’m actively working with two large insurance companies that are in the process of implementing this exact architecture. For each of them it’s a multi-year, multi-million dollar, multi-department modernization effort that will both migrate their analytical infrastructure and transform how they work. There are far more components in their final architecture, but I’ve simplified the diagram to make things more clear in this blog post.

I find it exciting that both customers agreed that governance was one (of many) priority logical capabilities. To them, initially, governance is primarily focused on data quality, master data, loss prevention, and security. Content Manager brings a lot to the governance table though. By piggy-backing the analytical infrastructure we can leverage existing investments and tap into entirely new technologies. All we need to do is think outside of the on-premise mental box.

Regulatory Compliance Use Cases

Two key aspects of regulatory compliance are records management and business process integration. Once you move into a modern analytical architecture though, you no longer need to directly integrate Content Manager with the source systems. Now you can tap into data as it flows through the architecture.

Using a SaaS product hosted on AWS that publishes to a Kinesis stream? Not a problem! We can use a Lambda to immediately create a record in Content Manager so that compliance officers have immediate access to records!

Automated Audit & Compliance-Compliance (2).png

Or maybe you want to ensure record holds are annotated in the Warehouse in real-time? Also, not a problem! Apache Beam, the open-source framework backing Dataflow, makes it easy to pull in active record holds as a side input via the CM Service API.

Automated Audit & Compliance-Compliance - Record Holds (1).png

Or maybe you need to push Content Manager data into your environment so that you can mitigate operational risk by extracting entities & sentiment from textual underwriting notes (stored in CM)? GCP makes it simple! We just need to create a Cloud Composer DAG that pulls the content from CM, runs them through AutoML, submits a job to an auto-provisioned Hadoop cluster, run the PySpark model to predict the propensity a new policy will file a claim, submit the results to BigQuery for retrospective analysis, and automatically kick-off workflows for internal auditors to evaluate a random sampling of the model results!

Automated Audit & Compliance-Compliance - Entity Extraction (2).png

By just cobbling components together we can leverage the existing investment in the analytical infrastructure to create compelling Content Manager integrations that drive regulatory compliance. This can be a compelling low-code approach that delivers immediate results from your cloud investment. Just scratching the surface with the exciting things on the horizon!

Loosely Coupled Record Automation

I want to automate the creation of records in Content Manager so that workflows can be initiated and other content can be captured. As records and workflows are processed by users within Content Manager I want to export that activity to a graph database. That graph database will highlight relationships between records that might not otherwise be easily determined. It can also aide in tracing lineage and relationships.

I few years ago I would have created a lightweight C# console app that implements the logic and directly integrates with Content Manager via the .Net or COM SDK. No longer though! Now I want to implement this using as many managed services and server-less components as possible.

This diagram depicts the final solution design…

CM Graph (2).png

What does each component do?

  • Cloud Scheduler — an online cron/task utility that is cheap and easy to use on GCP

  • Cloud Functions — light-weight, containerized bundles of code that can be versioned, deployed, and managed independently of the other components

  • Cloud PubSub — this is a message broker service that allows you to quickly integrate software components together. One system may publish to a topic. Other systems (0+) will subscribe to those topics

  • Service API — REST API end-point that enables integration over HTTP

  • Content Manager Event Server — custom .Net Event Processer Plugin that publishes new record meta-data and workflow state to a PubSub topic

  • Graph Database — enables searching via cypher query syntax (think social network graph) across complex relationships

Why use this approach?

  • Centralized — Putting the scheduler outside of the CM server makes it easier to monitor centrally

  • Separation of Concerns — Separating the “Check Website” logic from the “Saving to CM” logic enables us re-use the logic for other purposes

  • Asynchronous Processing — Putting PubSub between the functions let’s them react in real-time and independently of each other

  • Scaling — cloud functions and pubsub can scale horizontally to billions of calls

  • Error handling — when errors happen in a function we can redirect to an error topic for review (which could kick-off a workflow)

  • Language Freedom — I can use python, node, or Go for the cloud functions; or I can use .Net (via Cloud Run instead of as a Cloud Functions)

Overall this is a pretty simple undertaking. It will grow much more complex as time progresses, but for now I can get building!


Fetching the records

This is super easy with python! My source is a REST API that will contain a bunch of data about firms. For each retrieved firm I’ll publish a message to a topic. Multiple things could then subscribe to that topic and react to the message.

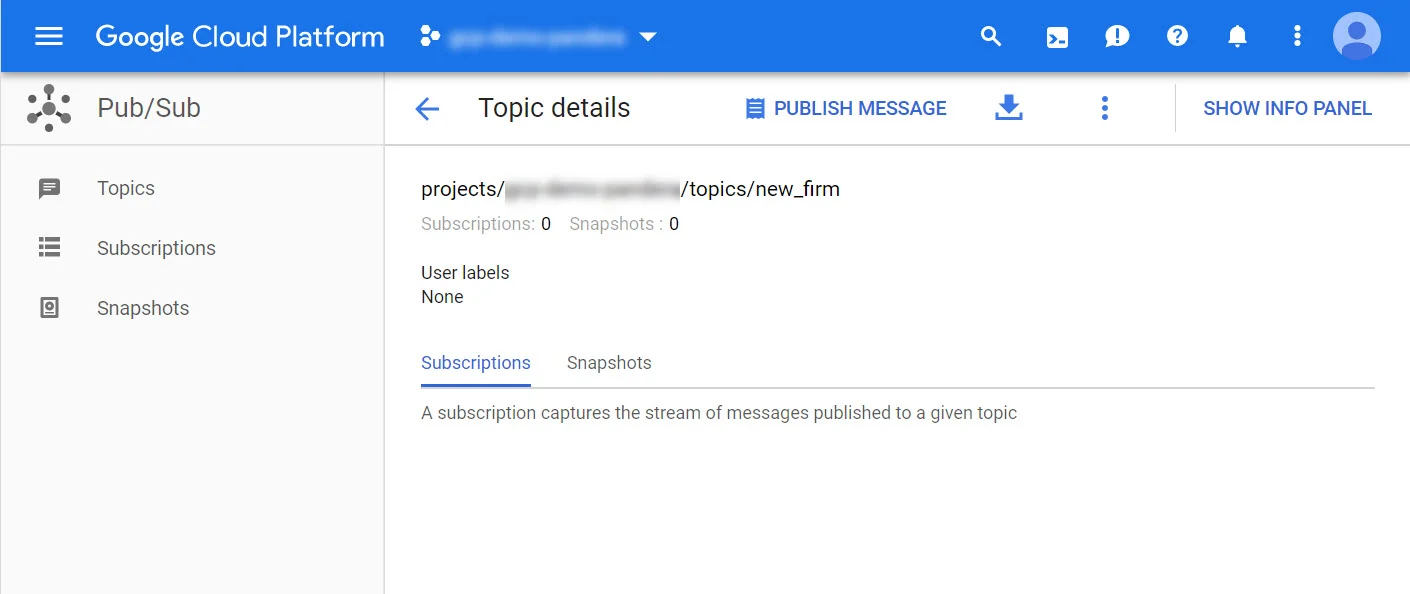

First we’ll create the topic…


Next I write the logic in a python module…

import urllib.request as urllib2
import sys
import json
import requests
import gzip
import os
from google.cloud import pubsub

project_id = os.getenv('GOOGLE_CLOUD_PROJECT') if os.getenv('GOOGLE_CLOUD_PROJECT') else 'CM-DEV'
topic_name = os.getenv('GOOGLE_CLOUD_TOPIC') if os.getenv('GOOGLE_CLOUD_TOPIC') else 'new_firm'

def callback(message_future):
    # When timeout is unspecified, the exception method waits indefinitely.
    if message_future.exception(timeout=30):
        print('Publishing message on {} threw an Exception {}.'.format(
            topic_name, message_future.exception()))
    else:
        print(message_future.result())

def downloadFirms(args):
    request_headers = requests.utils.default_headers()
    request_headers.update({
        'Accept''text/html,application/xhtml+xml,application/xml;q=0.9,image/webp,image/apng,*/*;q=0.8',
        'Accept-Language''en-US,en;q=0.9',
        'Cache-Control''max-age=0',
        'User-Agent''Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:52.0) Gecko/20100101 Firefox/52.0'
    })
    url = "https://api..."
    request = urllib2.Request(url, headers=request_headers)
    html = gzip.decompress(urllib2.urlopen(request).read()).decode('utf-8')
    data = json.loads(html)
    try:
        hits = data['hits']['hits']
        publisher = pubsub.PublisherClient()
        topic_path = publisher.topic_path(project_id, topic_name)
        for firm in hits:
            firm_data = firm['_source']
            firm_name = firm_data['firm_name']
            topic_message = json.dumps(firm_data).encode('utf-8')
            print(firm_name)
            msg = publisher.publish(topic_path, topic_message)
            msg.add_done_callback(callback)
    except Exception as exc:
        print('Error: ', exc)
    finally:
        print('Done!')

if __name__ == "__main__":
    downloadFirms()

Now that module can be placed into a cloud function…


Don’t forget to pass in the run-time parameters so that the function can post to the correct topic in the correct project. You may change these during your testing process.


With that saved we can now review the HTTP end-point address, which we’ll use when scheduling the routine download. Open the cloud function and click onto the trigger tab, then copy the URL to your clipboard.


In the cloud scheduler we just need to determine the frequency and the URL of the cloud function. I’ll post an empty json object as it’s required by the scheduler (even though I won’t consume it directly within the cloud function).


Next I need a cloud function that subscribes to the topic and does something with the data. For quick demonstration purposes I’ll just write the data out to the console (which will materialize in stackdriver as a log event).


With that created I can now test the download function, which should result in new messages in the topic, and then new output in Stackdriver. I can also create log metrics based on the content of the log. For instance, I can create a metric for number of new firms, number of errors, or average runtime execution duration (cloud functions cap out in terms of their lifetime, so this is important to consider).


Now I could just put the “create folder in CM” logic within my existing cloud function, but then I’m tightly-coupling the download of the firms to the registration of folders. That would limit the extent to which I can re-use code and cobble together new feature functionality. Tightly-coupled solutions are harder to maintain, support, and validate.

In the next post we’ll update the cloud function that pushes the firm into the Content Manager dataset!

Transcribing Audio Records with the Cloud Speech API

In this post I'll show how one might approach enriching their public archives with audio transcriptions provided by Google's Cloud Speech API.

First we can start with this collection of records:

Collection of Hearing Records

Collection of Hearing Records

Simple meta-data for each file

Simple meta-data for each file

For each of these audio files I'll have to download it, convert it, stage it, pass it to the speech api, and capture the results.  I'll craft this in powershell for the moment and then later implement this as a cloud function.  The results can then be added to the notes or as an OCR text rendition (or reviewed and then added).


The speech API will give me chunks of text with an associated confidence level, as shown below:


Which can all be mashed together for a pretty accurate transcription:


Step by Step

My first step is to enable the Speech API within GCP:




Then create a storage bucket to house the files.  I could skip this and upload it directly within a request, but staging them in a bucket makes it easier for me to later work with cloud functions.

To convert the audio from mp3 to wav format with a single audio channel I used ffmpeg:


ffmpeg -hide_banner -loglevel panic -y -i %inputfile% -ac 1 %outputfile%

I like ffmpeg because it's easy to use on windows servers & workstations.  But there's also a good fluent ffmpeg module available in nodejs, which allows this to be built as a cloud function.  For now here's my powershell function to convert the audio file...

function ConvertTo-Wav {
	Param([string]$inputFile)
	#few variables for local pathing
	$newFileName = [System.IO.Path]::getfilenamewithoutextension($inputFile) + ".wav"
	$fileDir = [System.IO.Path]::getdirectoryname($inputFile)
	$newFilePath = [System.IO.Path]::combine($fileDir, $newFileName)
	#once is enough
	Write-Debug("ConvertTo-Wav Target File: " + $newFilePath)
	if ( (Test-Path $newFilePath) -eq $false ) {
		#convert using open source ffmpeg
		$convertCmd = "ffmpeg -hide_banner -loglevel panic -y -i `"$inputFile`" -ac 1 `"$newFilePath`""
		Write-Debug ("ConvertTo-Wav Command: " + $convertCmd)
		Invoke-Expression $convertCmd
	}
	return $newFilePath
}

This function queries for the audio records from content manager and caches the result to disk (simply for development of the script)...

function Get-CMAudioFilesJson {
	$localResponseFile = [System.IO.Path]::Combine($localTempPath,"audioRecords.json")
	$audioFiles = @()
	if ( (Test-Path $localResponseFile) -eq $false ) {
		#fetch if results not cached to disk
		$searchUri = ($baseCMUri + "/Record?q=container:11532546&format=json&pageSize=100000&properties=Uri,RecordNumber,Url,RecordExtension,RecordDocumentSize")
		Write-Debug "Searching for audio records: $searchUri"
		$response = Invoke-RestMethod -Uri $searchUri -Method Get -ContentType $ApplicationJson
		#flush to disk as raw json
		$response | ConvertTo-Json -Depth 6 | Set-Content $localResponseFile
	} else {
		#load and convert from json
		Write-Debug ("Loading Audio Records from local file: " + $localResponseFile)
		$response = Get-Content -Path $localResponseFile | ConvertFrom-Json
	}
	#if no results just error out
	if ( $response.Results -ne $null ) {
		Write-Debug ("Processing $($response.Results.length) audio records")
		$audioFiles = $response.Results
	} else {
		Write-Debug "Error"
		break
	}
	return $audioFiles
}

A function to submit the record's audio file to the speech api (and capture the results):

function Get-AudioText
{
    Param($audioRecord)
    #formulate a valid path for the local file system
    $localFileName = (""+$audioRecord.Uri+"."+$audioRecord.RecordExtension.Value)
    $localPath = ($localTempPath + "\" + $localFileName)
    $sourceAudioFileUri = ($audioRecord.Url.Value + "/File/Document")
    $speechApiResultPath = ($localTempPath + "\" + $audioRecord.Uri + ".txt")
    $speechTextPath = ($localTempPath + "\" + $audioRecord.Uri + "_text.txt")
    #download the audio file if not already done so
    if ( (Test-Path $localPath) -eq $false ) {
        Invoke-WebRequest -Uri $sourceAudioFileUri -OutFile $localPath
    }
    #convert file if necessary
    if ( ($audioRecord.RecordExtension.Value.ToLower()) -ne "wav" ) {
        $localPath = ConvertTo-Wav $localPath
        $localFileName = [System.IO.Path]::GetfileName($localPath)
        if ( (Test-Path $localPath) -eq $false ) {
            Write-Error "Error Converting $($localPath)"
            return
        }
    }

    #transcribe, if not already done so
    Write-Debug ("Checking Speech API Text: "+$speechApiResultPath)
    if ( (Test-Path $speechApiResultPath) -eq $false ) {
        try {
            $bucketFilePath = "$bucketPath/$localFileName"
            Put-BucketFile -bucketFilePath $bucketFilePath -bucketPath $bucketPath -localPath $localPath
            #invoke speech api
            $speechCmd = "gcloud ml speech recognize-long-running $bucketFilePath --language-code=en-US"
            Write-Debug ("Speech API Command: "+$speechCmd)
            Invoke-Expression $speechCmd -OutVariable $speechResult | Tee-Object -FilePath $speechApiResultPath
            Write-Debug ("Speech API Result: " + $speechResult)
        } catch {
            Write-Error $_Write-Error $_
        }
    }

    #process transcription result
    if ( (Test-Path $speechApiResultPath) -eq $true ) {
        Write-Debug ("Reading Speech Results File: " + $speechApiResultPath)
		#remove previous consolidated transcription file
		if ( (Test-Path) -eq $true ) {Remove-Item $speechTextPath -Force }
		#flush each transcript result to disk
		$content.results | ForEach-Object { $_.alternatives | ForEach-Object { Add-Content $speechTextPath ($_.transcript+' ')  }  }
    } else {
        Write-Debug ("No Speech API Results: " + $speechTextPath)
    }
}

And then some logic to parse the search results and invoke the speech api:

#fetch the search results
$audioFiles = Get-CMAudioFilesJson
if ( $audioFiles -eq $null ) {
    Write-Error "No audio files found"
    exit
}
#process each
Write-Debug "Found $($audioFiles.Length) audio files"
foreach ( $audioFile in $audioFiles ) {
    Write-Host "Transcribing $($audioFile.RecordNumber.Value)"
    Get-AudioText  -audioRecord $audioFile
}

Here's the complete script:

Clear-Host
$DebugPreference = "Continue"

#variables and such
$AllProtocols = [System.Net.SecurityProtocolType]'Ssl3,Tls,Tls11,Tls12'
[System.Net.ServicePointManager]::SecurityProtocol = $AllProtocols
$ApplicationJson = "application/json"
$baseCMUri = "http://efiles.portlandoregon.gov"
$localTempPath = "C:\temp\speechapi"
$bucketPath = "gs://speech-api-cm-dev"

#create local staging area
if ( (Test-Path $localTempPath) -eq $false ) {
    New-Item $localTempPath -Type Directory
}

function Get-CMAudioFilesJson {
	$localResponseFile = [System.IO.Path]::Combine($localTempPath,"audioRecords.json")
	$audioFiles = @()
	if ( (Test-Path $localResponseFile) -eq $false ) {
		#fetch if results not cached to disk
		$searchUri = ($baseCMUri + "/Record?q=container:11532546&format=json&pageSize=100000&properties=Uri,RecordNumber,Url,RecordExtension,RecordDocumentSize")
		Write-Debug "Searching for audio records: $searchUri"
		$response = Invoke-RestMethod -Uri $searchUri -Method Get -ContentType $ApplicationJson
		#flush to disk as raw json
		$response | ConvertTo-Json -Depth 6 | Set-Content $localResponseFile
	} else {
		#load and convert from json
		Write-Debug ("Loading Audio Records from local file: " + $localResponseFile)
		$response = Get-Content -Path $localResponseFile | ConvertFrom-Json
	}
	#if no results just error out
	if ( $response.Results -ne $null ) {
		Write-Debug ("Processing $($response.Results.length) audio records")
		$audioFiles = $response.Results
	} else {
		Write-Debug "Error"
		break
	}
	return $audioFiles
}

function ConvertTo-Wav {
	Param([string]$inputFile)
	#few variables for local pathing
	$newFileName = [System.IO.Path]::getfilenamewithoutextension($inputFile) + ".wav"
	$fileDir = [System.IO.Path]::getdirectoryname($inputFile)
	$newFilePath = [System.IO.Path]::combine($fileDir, $newFileName)
	#once is enough
	Write-Debug("ConvertTo-Wav Target File: " + $newFilePath)
	if ( (Test-Path $newFilePath) -eq $false ) {
		#convert using open source ffmpeg
		$convertCmd = "ffmpeg -hide_banner -loglevel panic -y -i `"$inputFile`" -ac 1 `"$newFilePath`""
		Write-Debug ("ConvertTo-Wav Command: " + $convertCmd)
		Invoke-Expression $convertCmd
	}
	return $newFilePath
}

function Put-BucketFile {
	Param($bucketFilePath,$bucketPath,$localPath)
	#upload to bucket
    $checkCommand = "gsutil -q stat $bucketFilePath"
    $checkCommand += ';$?'
    Write-Debug ("GCS file check: " + $checkCommand)
    $fileCheck = Invoke-Expression $checkCommand
    #fileCheck is true if it exists, false otherwise
    if (-not $fileCheck ) {
        Write-Debug ("Uploading to bucket: gsutil cp " + $localPath + " " + $bucketPath)
        gsutil cp $localPath $bucketPath
    }
}

function Get-AudioText
{
    Param($audioRecord)
    #formulate a valid path for the local file system
    $localFileName = (""+$audioRecord.Uri+"."+$audioRecord.RecordExtension.Value)
    $localPath = ($localTempPath + "\" + $localFileName)
    $sourceAudioFileUri = ($audioRecord.Url.Value + "/File/Document")
    $speechApiResultPath = ($localTempPath + "\" + $audioRecord.Uri + ".txt")
    $speechTextPath = ($localTempPath + "\" + $audioRecord.Uri + "_text.txt")
    #download the audio file if not already done so
    if ( (Test-Path $localPath) -eq $false ) {
        Invoke-WebRequest -Uri $sourceAudioFileUri -OutFile $localPath
    }
    #convert file if necessary
    if ( ($audioRecord.RecordExtension.Value.ToLower()) -ne "wav" ) {
        $localPath = ConvertTo-Wav $localPath
        $localFileName = [System.IO.Path]::GetfileName($localPath)
        if ( (Test-Path $localPath) -eq $false ) {
            Write-Error "Error Converting $($localPath)"
            return
        }
    }

    #transcribe, if not already done so
    Write-Debug ("Checking Speech API Text: "+$speechApiResultPath)
    if ( (Test-Path $speechApiResultPath) -eq $false ) {
        try {
            $bucketFilePath = "$bucketPath/$localFileName"
            Put-BucketFile -bucketFilePath $bucketFilePath -bucketPath $bucketPath -localPath $localPath
            #invoke speech api
            $speechCmd = "gcloud ml speech recognize-long-running $bucketFilePath --language-code=en-US"
            Write-Debug ("Speech API Command: "+$speechCmd)
            Invoke-Expression $speechCmd -OutVariable $speechResult | Tee-Object -FilePath $speechApiResultPath
            Write-Debug ("Speech API Result: " + $speechResult)
        } catch {
            Write-Error $_Write-Error $_
        }
    }

    #process transcription result
    if ( (Test-Path $speechApiResultPath) -eq $true ) {
        Write-Debug ("Reading Speech Results File: " + $speechApiResultPath)
		#remove previous consolidated transcription file
		if ( (Test-Path) -eq $true ) {Remove-Item $speechTextPath -Force }
		#flush each transcript result to disk
		$content.results | ForEach-Object { $_.alternatives | ForEach-Object { Add-Content $speechTextPath ($_.transcript+' ')  }  }
    } else {
        Write-Debug ("No Speech API Results: " + $speechTextPath)
    }
}

#fetch the search results
$audioFiles = Get-CMAudioFilesJson
if ( $audioFiles -eq $null ) {
    Write-Error "No audio files found"
    exit
}
#process each
Write-Debug "Found $($audioFiles.Length) audio files"
foreach ( $audioFile in $audioFiles ) {
    Write-Host "Transcribing $($audioFile.RecordNumber.Value)"
    Get-AudioText  -audioRecord $audioFile
}
